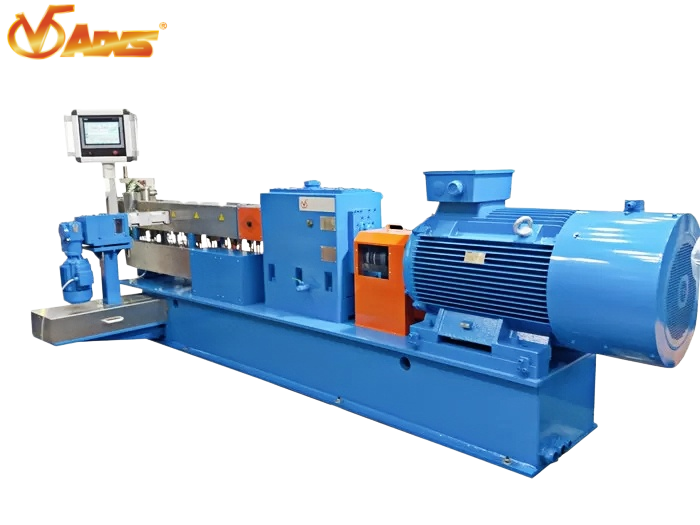

PE/PET Filler Masterbatch Twin Screw Extruder Machine 350kg/h Output

The HPL51 twin screw extruder pelletizing line is specifically engineered for high-efficiency filler masterbatch production. Its high-torque design delivers superior output capacity while maintaining lower processing temperatures compared to conventional low-torque extruders of equivalent size.

• Color Masterbatch: PE, PET
• Filler Masterbatch: PE, PET + CaCO₃
• Compatible Polymers: LDPE, LLDPE, HDPE, EVA, PVC, PP, PET, ABS, PC, PA

1. High Output Capacity

   Delivers 100-200% higher output than low-torque twin screw extruders of the same screw diameter. Our largest extruder model achieves a maximum output of 12 metric tons per hour.

2. Energy Efficiency

   Our compact high-torque design allows smaller machines to replace larger conventional extruders. For example, the HPL51 outperforms standard 65mm extruders in output, resulting in reduced energy consumption, lower material waste, and smaller factory footprint requirements.

   Additionally, our ceramic heating rod technology reduces energy consumption by 15-20% compared to traditional cast copper heaters.

3. Advanced Engineering Design
   • High torque density: Gearbox load capacity factor up to 15Nm/cm³
   • High speed capability: Maximum screw speed up to 600rpm (standard configuration)
4. Extended Service Life

   Unique bearing arrangement eliminates radial loads on the output shaft bearings, significantly extending the service life of critical bearing components. The gearbox has a designed service life of 72,000 operating hours.

5. Customization Capabilities
   • Wide OD/ID ratio range: 1.33 to 2.0
   • Customizable screw-barrel clearances: Minimum clearance down to 0.15mm
   • Tailored screw profiles for specific material formulations

We are dedicated to the development, design, and manufacturing of co-rotating and counter-rotating parallel twin screw extruder production lines. Our equipment is characterized by high torque, high efficiency, low energy consumption, excellent cost-performance ratio, and long service life. Our technical capabilities are aligned with the world's leading extruder manufacturers.

Our complete product and service offerings include:

• Complete twin screw extruder production lines
• High-torque gearboxes
• Automatic long fiber reinforced thermoplastic composites (LFT-D) production lines
• Counter-rotating parallel twin screw extruders
• Differential concentration mixers

Parts and advantages

Transmission gearbox		The most advanced structure: bilateral symmetry gear drive system; it’s the same with the gearbox of German Flanders, Austria EssenBas.Now, the first-line extruder manufacturers in the world, such as Corperion,Berstorff, Leistritz, Toshiba, JSW are using the transmission structure; servcie life of the gearbox≥72000hrs.
Screw element		Various kinds of function elements, mixing and dispersing elements developed by ourselves can provie flexible production for kinds of materials and production process. Optional material: W6Cr5Mo4V2, Ni-based alloy, HIP alloy,Co-based alloy.
Barrel		Barrels are equipped with integrated wear-resistant alloy steel liner, which has the same composition and wearing feacture with W&P .Our mirror polishing seamless barrels, surface finish Ra0.2, verticality between barrels inner hole≤0.015mm；linearity of ten assembled barrels≤0.05mm； Optional material: W6Cr5Mo4V2, Nitriding steel, Tool steel, Ni-based alloy, HIP alloy,Co-based alloy.
Torque limiter		Steel ball type safety clutch + torque limiter Made in Germany have the characteristics of accurate torque protection, high repeatability and quick reset.
